Use this Universal M.2 & mSATA SSD to easily connect any of the 6 different size M.2 (NGFF) or mSATA SSDs to any SATA port. Can be used as a bootable disk and requires no extra power.

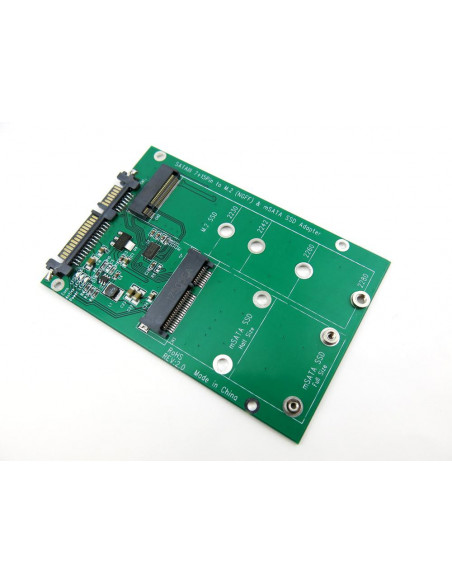

Universal M.2 & mSATA SSD Adapter Converter
Features:
2.5" SATA SSD Form Factor : 98 x 65.5mm
Full size mSATA : 50.95mm(L) x 30mm(W)
Green LED indicates power status
Half size mSATA : 26.8mm(L) x 30mm(W)
In-rush current suppression
M.2 (NGFF) & mSATA to SATA III Adapter board.
PCI Express M.2 Spec. Revision 0.7, Version 1.0
PCI Express Mini Card Electromechanical Spec. 1.2
PWM synchronous buck converter Power IC
Red LED indicates active status
Short circuit protection
Support SATA Revision 3.2
Thermal shutdown protection
Supports the following form factor M.2 types:
2230-D2-B-M: 30mm(L) x 22mm(W)
2242-D2-B-M: 42mm(L) x 22mm(W)
2260-D2-B-M: 60mm(L) x 22mm(W)
2280-D2-B-M: 80mm(L) x 22mm(W)
Supports the following form factor mSATA SSDs:
half size mSATA: 26.8mm(L) x 30mm(W)
full size mSATA: 50.95mm(L) x 30mm(W).
Package Includes:
(1) Universal 3.0 Solid State Drive To SATA Interface
Adapter Converter
Screws and nuts as pictured.
