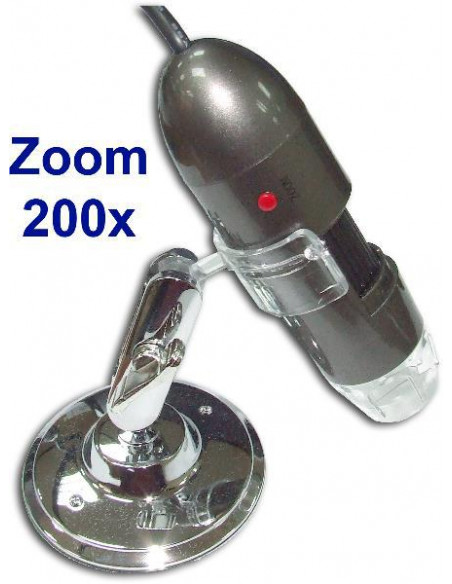

Overview
1) Color CMOS Image Sensor
2) High Speed DSP (CPU)
3) Micro-Scope Lens (25X&200X)
4) Resolution up to 1600*1200(2,0 Mpx)
5) 8 LED Light Source
6) Auto Explosure Control
7) Special Image treatment program
8) USB 1.1/2.0 Compatible
9) Auto White Balance Control
10) Auto Sharpness Control
11) Auto Color management
12) Snap Function
13) Digital Zoom Available
14) Brightness Adjustable
15) In-line Measurement (Option)
16) Fixed Stand for hand-free
* System Requirement
1) Win7 Vista, XP, 2000
2) CPU: 1.0G&Above
3) RAM: 256MB & above
4) HD memory: 120MB &above
5) CD ROM Driver
6) USB Port: 1.1 or 2.0
Tabla comparativa:
| Codigo | 7830101 | 7830089 | 7182003 | 7182010 |
| Sensor de Imagen | Sensor CMOS en color | |||
| Color: | 24 bit RGB | |||
| Tamaño del sensor | -1,3 Mpx | -2.0Mpx | -2.0Mpx | -2.0Mpx |
| Video Resolucion | -1280x1024 -640x480 -320x240 -160x120 | -1600x1200 -1280x1024 -640x480 -320x240 -160x120 | PAL: 1600x1200 | |
| Lentes | Zoom Dual Axis 27x y 100x | Zoom de 3 etapas | M12 | 4G M12 |
| Tipo de zoom | Manual | |||
| Rango de Foco | 10mm ~ infinite | 5mm ~ 250mm | 0mm ~ 40mm | |
| Magnification Ratio: | 10x ~ 200x | 25x ~ 200x | 5x ~ 500x | 25x ~ 400x |
| Nº. de LEDs | x8 | x8 | x8 | x4 |
| Color de los LED | Blancos | |||
| Intensidad | 40000 mLux | 60000 mLux | ||
| under 600 Lux Brightness | Under 600 Lux Brightness | Under 600 Lux Brightness | ||
| Control de la luz | Manual | |||
| Control de Brillo | Automatico | |||
| Balance de blancos | Automatico | |||
| Exposicion | Automatico | |||
| Formato TV | -- | PAL | ||
| Conexion | USB 1.1 y 2.0 | USB 1.1 y 2.0 | USB 2.0 | RCA AV |
| Formato de Video | AVI | -- | ||
| Imagenes por segundo | 30fps | 25fps | ||
| Alimentacion | 5V por el cable USB | Adaptador 5V DC / 110V~240V | ||
| Sistema Operativo | -Windows XP -Windows Vista | -- | ||
| Idiomas | English, Chinese German, Italy, Spain Portugal, Japan | -- | ||
| Contenido de la caja | -Microscopio -Soporte -Manual de uso -Driver | -Microscopio | -Microscopio | |
