Introduction:

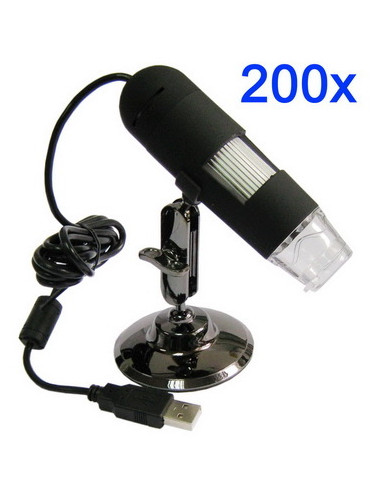

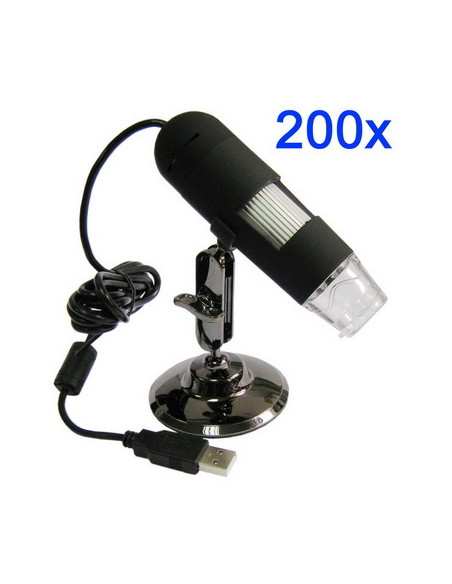

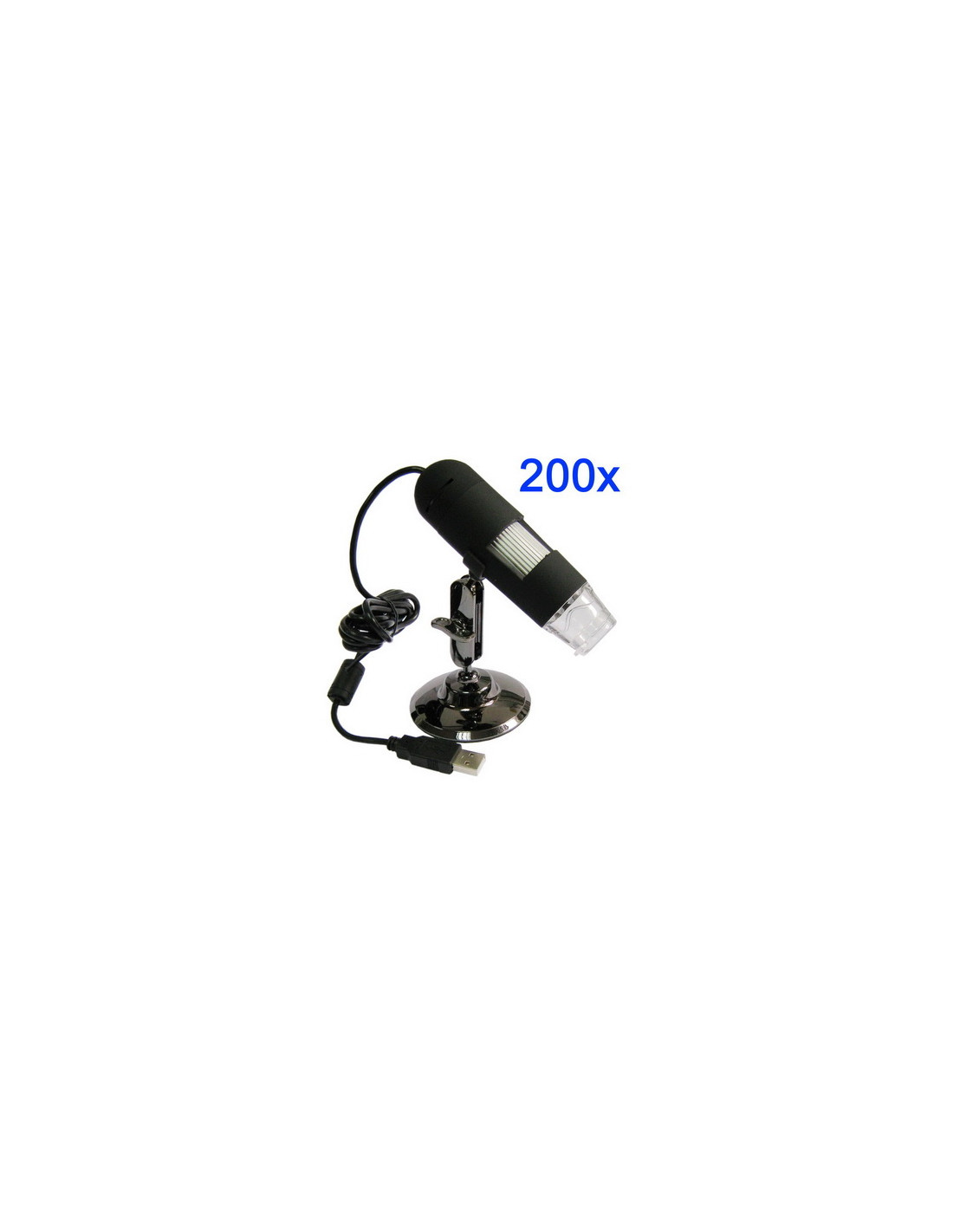

1) It is a high-tech while easy to use Digital Microscope. With this unit you will see a unique and "bigger" world.
2) It's easy to zoom in on stamps, coins, paper currency, plants, insects, rocks and minerals, and so much more.
Computer System Requirements:
1) Windows 2000/XP/VISTA/WIN7&Mac
2) P4 1.8 or above
3) RAM: 256M
4) Video Memory: 32M
5) USB port: 2.0
6) CD-ROM Drive
Technical Specifications:
1) Image sensor: 1.3 Mega Pixels
2) Still capture resolution: 1600x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, 352x288, 320x240, 160x120
3) Video capture resolution: 1600x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, 352x288, 320x240, 160x120
4) Focus Range: Manual focus from 10mm to 500mm
5) Frame Rate: Max 30f/s under 600 Lus Brightness
6) Magnification Ratio: 20x to 200x
7) Video format: AVI
8) Photo format: JPEG or BMP
9) Light source: 8 LED (adjustable by control wheel)
10) PC interface: USB2.0
11) Power source: 5V DC from USB port
12) Operation system: Windows2000/XP/Vista/Win7/ Mac
13) OSD language: English, German, Spanish, Korean, French, Russian
14) Bundle software: MicroCapture
15) Size: 110mm (L) x 33mm (R)
Tabla comparativa:
| Codigo | 7830101 | 7830089 | 7182003 | 7182010 |
| Sensor de Imagen | Sensor CMOS en color |
| Color: | 24 bit RGB |
| Tamaño del sensor | -1,3 Mpx | -2.0Mpx | -2.0Mpx
| -2.0Mpx |
| Video Resolucion | -1280x1024
-640x480
-320x240
-160x120 | -1600x1200
-1280x1024
-640x480
-320x240
-160x120
| | PAL: 1600x1200 |
| Lentes | Zoom Dual Axis 27x y 100x | Zoom de 3 etapas | M12 | 4G M12 |
| Tipo de zoom | Manual |
| Rango de Foco | 10mm ~ infinite | | 5mm ~ 250mm | 0mm ~ 40mm |
| Magnification Ratio: | 10x ~ 200x | 25x ~ 200x | 5x ~ 500x | 25x ~ 400x |
| Nº. de LEDs | x8 | x8 | x8 | x4 |
| Color de los LED | Blancos |
| Intensidad | 40000 mLux | 60000 mLux |
| | under 600 Lux Brightness | | Under 600 Lux Brightness | Under 600 Lux Brightness |
| Control de la luz | Manual |
| Control de Brillo | Automatico |
| Balance de blancos | Automatico |
| Exposicion | Automatico |
| Formato TV | -- | PAL |
| Conexion | USB 1.1 y 2.0 | USB 1.1 y 2.0 | USB 2.0 | RCA AV |
| Formato de Video | AVI | -- |
| Imagenes por segundo | 30fps | 25fps |
| Alimentacion | 5V por el cable USB | Adaptador 5V DC / 110V~240V |
| Sistema Operativo | -Windows XP
-WindowsVista
-Windows 7 32/64 bits | -- |
| Idiomas | English, Chinese German, Italy, Spain Portugal, Japan | -- |
| Contenido de la caja | -Microscopio
-Soporte
-Manual de uso
-Driver | -Microscopio
-Soporte
-Mini medidor
-Manual de uso
-Driver | -Microscopio
-Soporte
-Cable RCA macho/macho
-Adaptador de corriente
-Manual de usuario |
