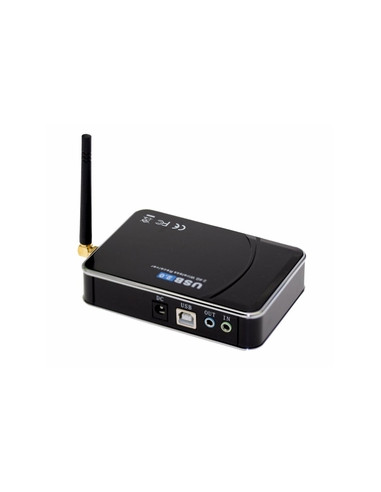

Z-OUTLET KIT RECEPTOR & CAMARA WIRELESS EASYCAP001

DIY Home/Shop/Business Spy Camera Surveillance System, Easy to Use USB 2.0 Connection.

1. Alarm notification by e-mail with imageB

2. Dynamic mask on motion-detection area of multi-camera (one ~ four)

3. Sound alarm.

4. Video signal filter, for filtrate Active and Invalid channel.

5. Signal lost alarm.

6. Motion Detection.

7. Adjustable sensitivity.

8. Automatically lock, while not any operate.

9. Schedule Monitoring sessions, for timer snap.

10. Record video/audio(with usb2.0 audio interface),snap shot.

11. Automatic Space management. Stop recorder or capture still automatically on disk full.

12. Support 4 Channel Video input on one computer.

13. Support On Screen Display. Displays date and time ,or channel description on video.

14. Supports manual open/close Invalid channel, or add/delete channel description.

15. Supports login and logout, by User Name and Password.

Frequency 2.4GHz Wireless Receiver

Channel 4 channel: 2.414G, 2.432G, 2.450G, 2.468G

Input 4 channel wireless cameras, or 1 channel Video/Audio Input

Antenna 50 ohm SMA

Output 1 Video/Audio Output for 4 ch Video, 1 USB2.0 Output for 4 ch.

Display Rate 25 fps (PAL), 30fps (NTSC)

Recording Rate 25 fps (PAL), 30fps (NTSC)

Compression Format MPEG4

Video Resolution 704x576,352x288(PAL) 640x480,320x240(NTSC)

Recorder Media HDD, USB Disk, ZIP, CD-R/W

Record Mode Motion/Sensor/Schedule/Manual

Network TCP/IP

I/O Device 4 Ch Hi/Low Input, 1 Ch Relay Output

System requirements:

Windows 2000/XP/Vista

Pentium 4 of CPU or better

512MB of RAM better

Microsoft DirectX 9.0C

USB 2.0 free port

Audio Card / True Color VGA Card

Included in Package:

1, EasyCAP001 4 channel 2.4G wireless receiver and receiving antenna;

2, 7.5V power adapter for receiver;

3, Video/Audio cable;

4, Remote controller;

5, Quick Installation Guide & Software CD (Driver & Application);
