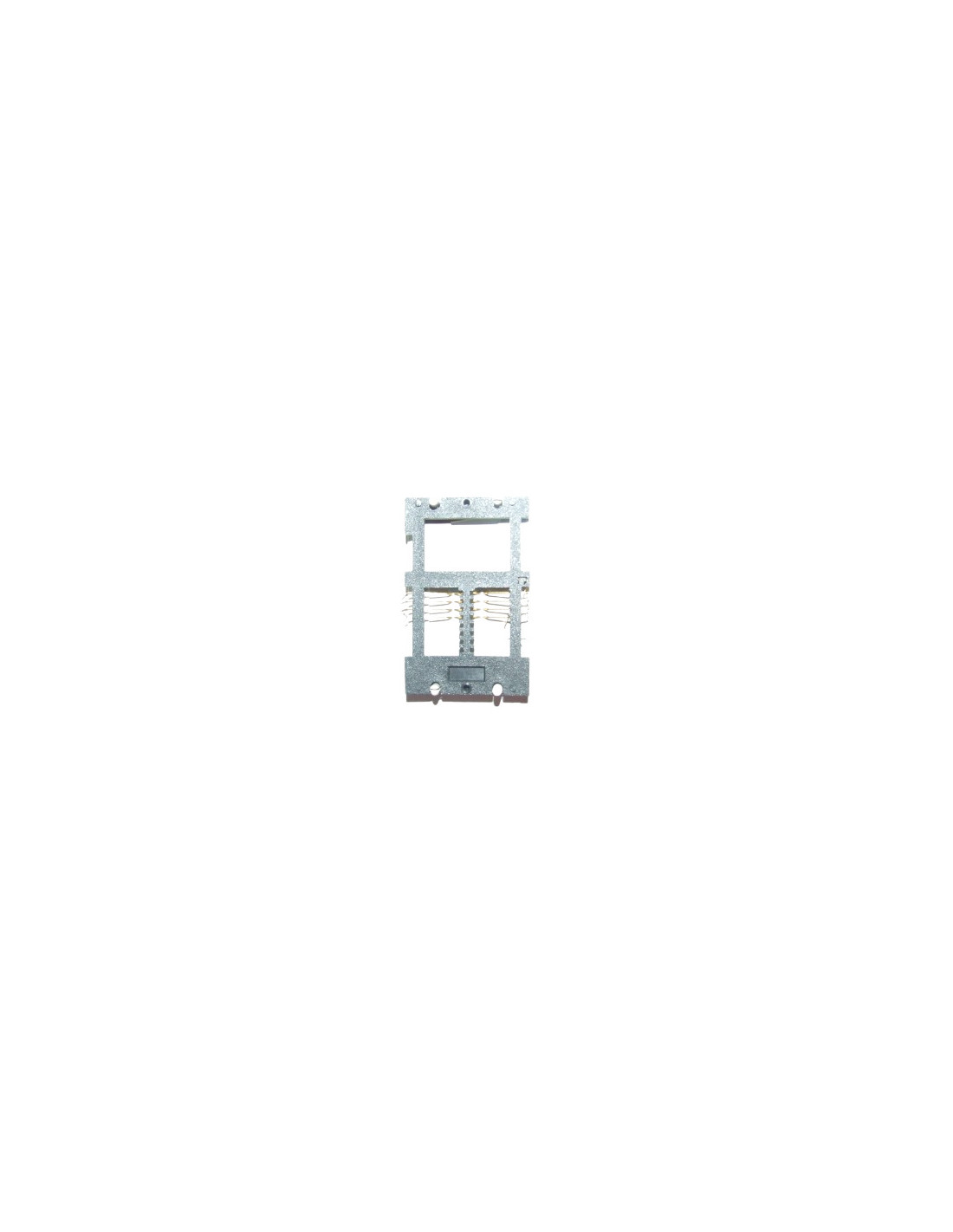

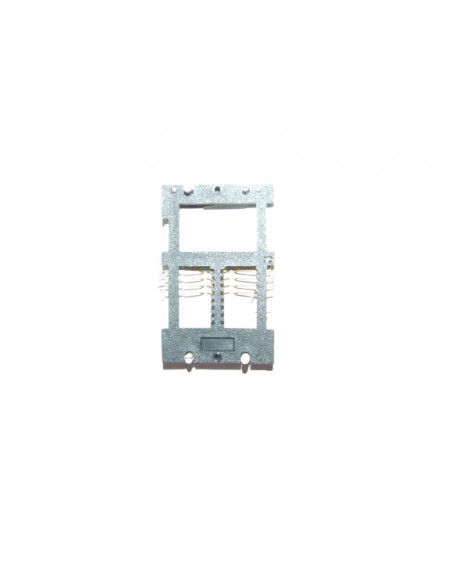

LECTOR TARJETA ZOCALO SMARTCARD ISO 7816-7813  NC
LECTOR TARJETA ZOCALO SMARTCARD ISO 7816-7813  NC

LECTOR TARJETA ZOCALO SMARTCARD ISO 7816-7813 (NC)

0,48 €
Impuestos incluidos
LECTOR TARJETA ZOCALO SMARTCARD ISO 7816-7813 BLANCA(NC) Zocalo Smartcard (Normalmente Cerrado). CAJA 299

Descripción

Friction version

Smartcard connectors with 8 wiping contacts for mainly internal usage

with a normally closed card detection switch (blade type).

All connectors are PCB mounting and include board locating pegs.

technical specification

Electrical between card contacts 1000V r.m.s.

and detection circuit 1000V r.m.s.

Current 10µA min.

1A max.

Contact resistance<100mW

Insulation resistance >103MW

Card detection switch

contact resistance<100mW

Test voltage 500V r.m.s

Environment

Storage temperature -40°C to +100°C

Operating temperature -40°C to +90°C

Mechanical

Operating life 1000000 operations

CAJA 299
