Type CPU / Microprocessor
Market segment Desktop
Family AMD Athlon 64 X2
Model number ? 4200+
CPU part numbers

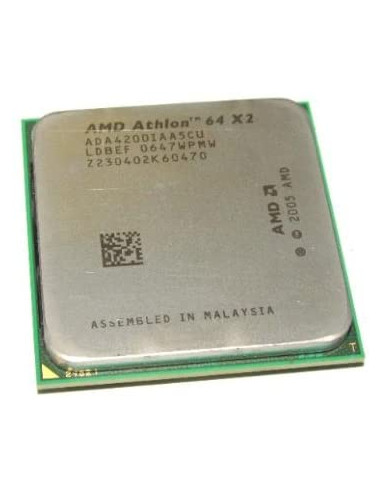

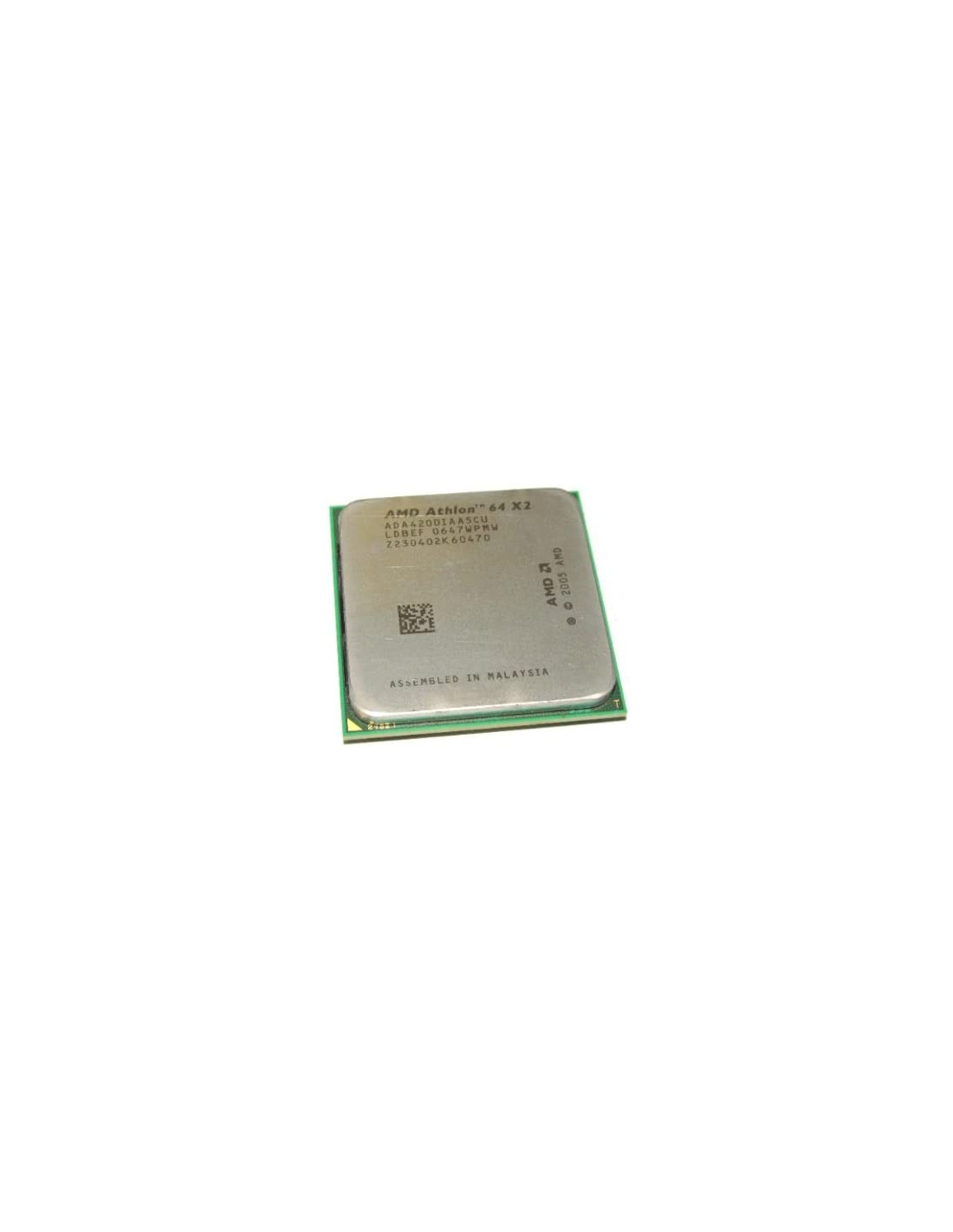

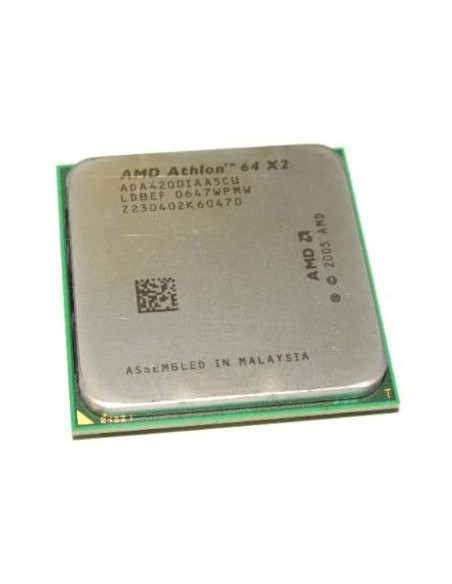

ADA4200IAA5CU is an OEM/tray microprocessor
ADA4200CUBOX is a boxed microprocessor with fan and heatsink
Stepping codes ADB4F CDB4F LDB4F LEDBF NDB4F NDBBF NDBEF
Frequency ? 4200+ (rated)
2200 MHz (real)
Bus speed ? One 1000 MHz 16-bit HyperTransport link (2GT/s)
Clock multiplier ? 11
Package 940-pin organic micro Pin Grid Array (micro-PGA)
Socket Socket AM2
Introduction date May 23, 2006 [1]
Architecture / Microarchitecture
Microarchitecture K8
Processor core ? Windsor
Core stepping ? F2
Manufacturing process 0.09 micron silicon-on-insulator (SOI) technology
164 million transistors
Data width 64 bit
The number of CPU cores 2
The number of threads 2
Floating Point Unit Integrated
Level 1 cache size ? 2 x 64 KB 2-way set associative instruction caches
2 x 64 KB 2-way set associative data caches
Level 2 cache size ? 2 x 512 KB 16-way set associative exclusive caches
Physical memory 1 TB
Virtual memory 256 TB
Multiprocessing Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
AMD64 / AMD 64-bit technology ?
EVP / Enhanced Virus Protection ?
AMD-V / AMD Virtualization technology
Low power features
Cool'n'Quiet technology
Halt state
Stop Grant state ?
Integrated peripherals / components
Integrated graphics None
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR2-800
Maximum memory bandwidth (GB/s): 12.8
Other peripherals HyperTransport 2.0 technology (1 link)
Electrical / Thermal parameters
V core ? 1.3V / 1.35V
Maximum operating temperature ? 55°C - 70°C
Thermal Design Power ? 89 Watt
Notes on AMD Athlon 64 X2 4200+ (Socket AM2, 89W, rev. F2)
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 34.7 Watt
[1] - Information is not confirmed
