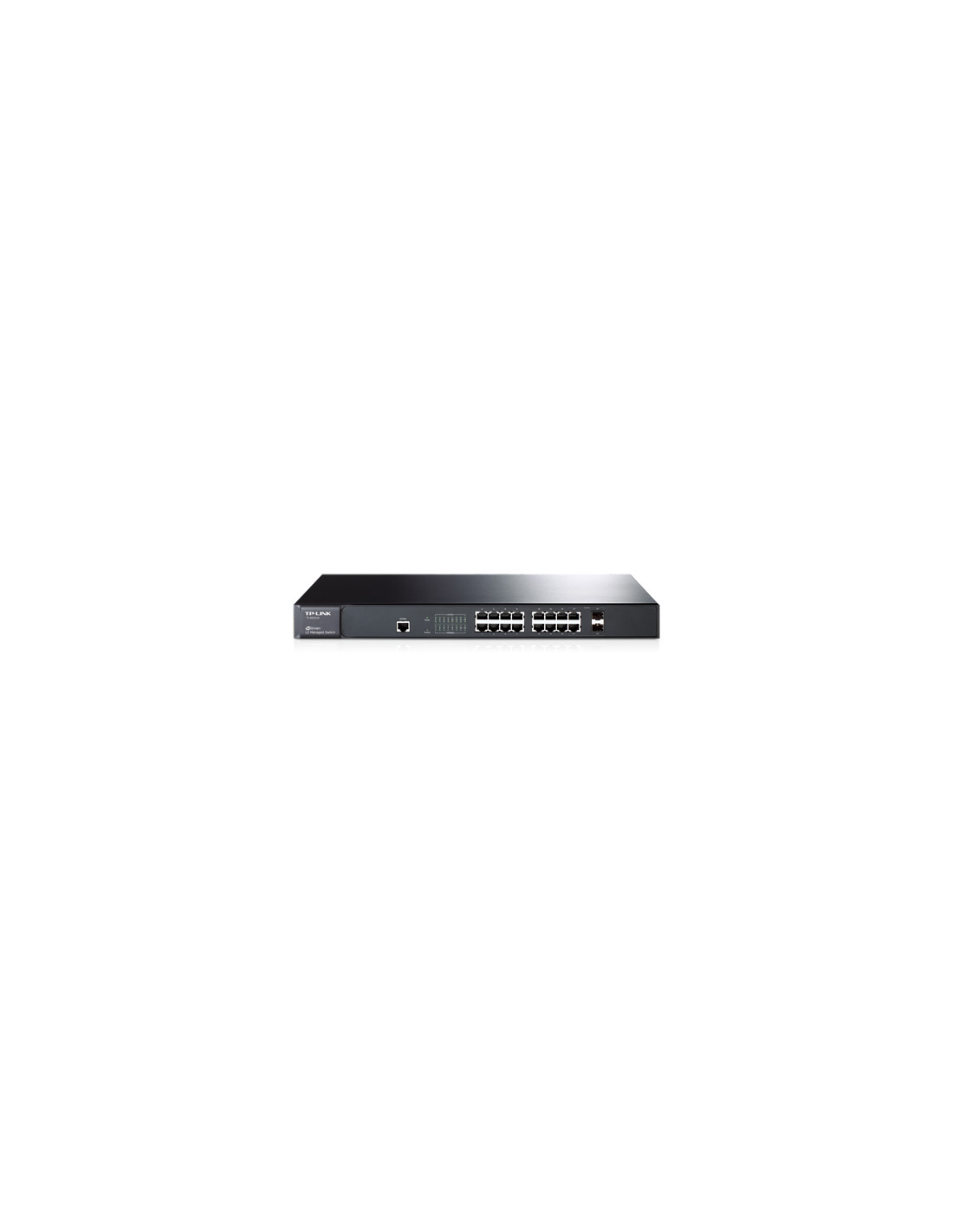

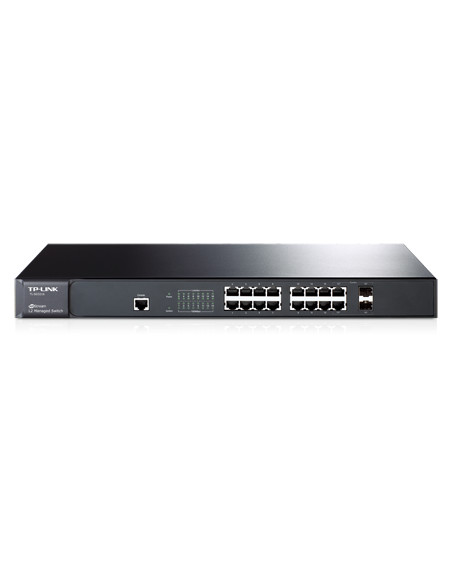

SWITCH GEST L2 16P RJ45 GIGABIT TPLINK TL-SG3216

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,

IEEE 802.3ad,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,

IEEE 802.1w,IEEE 802.1q,IEEE 802.1x,IEEE 802.1p

Interface 16 10/100/1000Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

2 Combo 100/1000Mbps SFP Slots*

1 Console Port

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable

(maximum 100m)

100BASE-FX:MMF,SMF

1000BASE-X: MMF, SMF

Dimensions( W x D x H ) 17.3*8.7*1.7 in.(440*220*44 mm)

Power Supply 100~240VAC, 50/60Hz

PERFORMANCE

Bandwidth/Backplane 32Gbps

MAC Address Table 8k

Packet Buffer Memory 512KB

Packet Forwarding Rate 23.8Mpps

Jumbo Frame 10240 Bytes

SOFTWARE FEATURES

Quality of Service Support 802.1p CoS/DSCP priority

Support 4 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

Voice VLAN

L2 Features IGMP Snooping V1/V2/V3

802.3ad LACP (Up to 8 aggregation groups,

containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

BPDU Filtering/Guard

TC/Root Protect

Loop back detection

802.3x Flow Control

VLAN Support IEEE802.1Q with 4K VLAN groups and 4K VIDs

Port/ MAC/Protocol-based VLAN

GARP/GVRP

Access Control List L2~L4 package filtering based on source and destination

MAC address, IP address, TCP/UDP ports, 802.1p,

DSCP, protocol and VLAN ID

Time Range Based

Security IP-MAC-Port-VID Binding

IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN

DoS Defence

Dynamic ARP inspection (DAI)

SSH v1/v2

SSL v2/v3/TLSv1

Port Security

Broadcast/Multicast/Unknown-unicast Storm Control

Management Web-based GUI and CLI management

SNMP v1/v2c/v3,compatible with public MIBs and

TP-LINK private MIBs

RMON (1, 2, 3, 9 groups)

DHCP/BOOTP Client,DHCP Snooping,DHCP Option82

CPU Monitoring

Port Mirroring

Time Setting: SNTP

Integrated NDP/NTDP feature

Firmware Upgrade: TFTP & Web

System Diagnose: VCT

SYSLOG & Public MIBS

OTHERS

Certification CE, FCC

Package Contents Switch;

Power Cord;

Quick Installation Guide;

Resource CD;

Rackmount Kit;

Rubber Feet

Environment Operating Temperature: 0?~40? (32?~104?);

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
