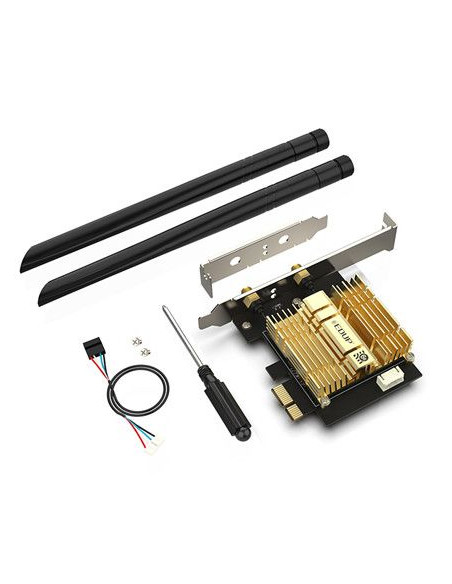

TARJETA PCI-E WIFI6E + BLUETOOTH 5.2 2.4/5/6GHZ LP EDUP EP-9651GS
General Information
Description
EDUP EP-9651GS WiFi 6E AX210 WiFi Card BT5.2 6GHz 5374Mbps PCI-E Wireless Adapter
Item model number EP-9651GS
Chipset WiFi6E AX210
Standards IEEE 802.11a/b/g/n/ac WiFi and BT5.2 +HS (WiFi: PCI-E, BT: USB)
PCI Bus PCI-E-X1/X4/X8/X16
Frequency Range WiFi: 2.4GHz, 5.8GHz / BT: 2402MHz~2483MHz
Antenna 2*6 dBi
Transmission Rate 2.4G up to 574Mbps, 5.8G up to 2400Mbps
Operating System Microsoft Windows* 11/10, Linux*, Chrome OS*
Radio ON/OFF Control Supported
Connector Interface PCIe
Operating Temperature (Adapter Shield) 0°C to +80°C
Humidity Non-Operating 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
Wi-Fi Alliance8 Wi-Fi CERTIFIED* a, b, g, n, ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Miracast* , Wi-Fi Agile Multiband*, Wi-Fi Optimized Connectivity*, Wi-Fi Location, Passpoint*, Wi-Fi Aware*, and Wi- Fi TimeSync*
Blue-tooth Blue-tooth 5.2
Security Methods WPA* and WPA2* Personal and Enterprise; WPA3* (pending OS support)
Features
EDUP 9651gs Network card bulit-in AX210 chip, support Wi-Fi 6 technology, MU-MIMO Wireless technology and Blue-tooth 5.2 technology; Upgrade Wi-Fi speed up to 3000Mbps ; Supports Windows 10 64-bit for desktop PC.Significantly improve the network quality, and the Internet speed is improved compared to ordinary AC network cards. The router can transmit data with 3 devices at the same time.
Complies with IEEE 802.11a/b/g/n/ac/ax WiFi and Blue-tooth 5.2HS (WiFi: PCI-E, BT: USB)
Supports PCI-E-X1/X4/X8/X16
2.4G/5G/6G Tri frequency optional, 5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps
Supports Cisco CCX
Supports multiple BSSID
The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps
