TARJETA RED PCI-E GIGA 10/100/1000 EDUP EP-9602GS
The EDUP Realtek RTL8111F EP-9602GS Gigabit Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111F offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.
A single 10/100/1000Mbps compatible RJ45 Ethernet port
Gigabit detection and Link/Activity LED indicators
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x
Full Duplex Flow Control
Jumbo frame support
Full and half duplex support
Supports Wake-on-LAN function
Crossover Detection & Auto-Correction (Auto MDI/MDI-X)

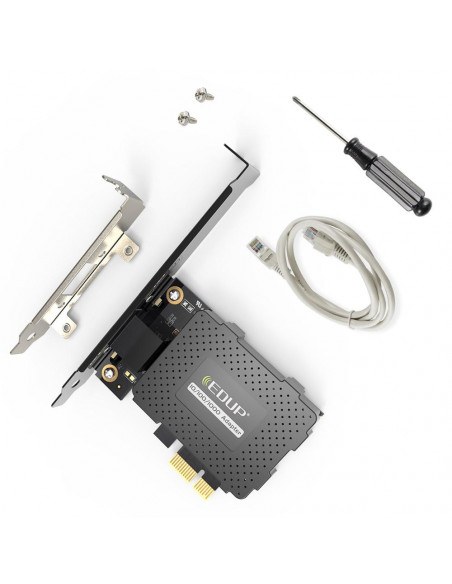

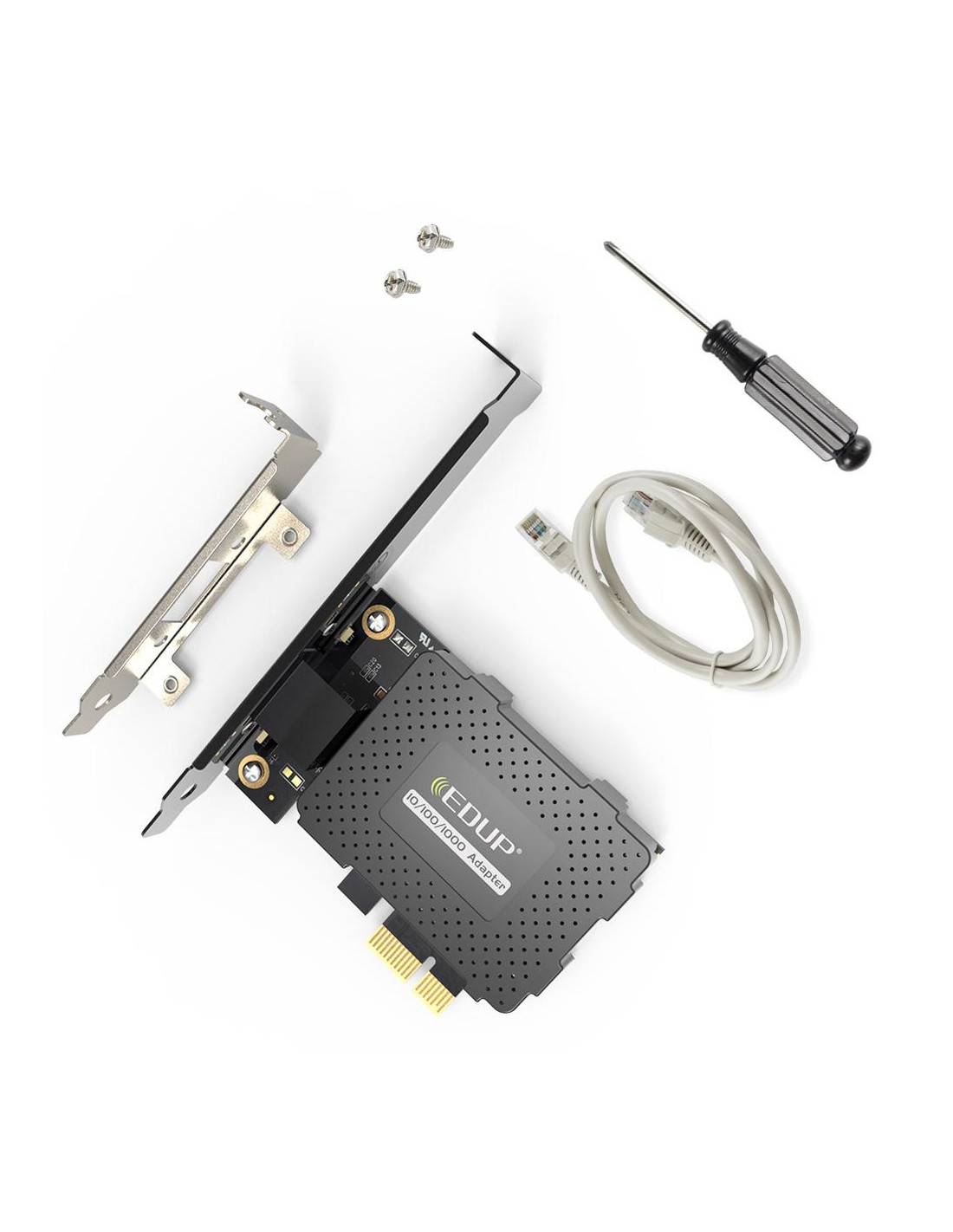

Includes a low profile/half-height installation bracket
Chip: Realtek 8111F
Connectivity Technology: wired
Transmission Rate: 10/100/1000Mbps
Interface Type: PCI Express x1
Port: RJ45
Colour: black
IEEE standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Windows® 11 / 10 / 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server® 2012, 2008 R2, 2003(32/64)
Maximum Data Transfer Rate: 1000 Mbps
Compatible Networks: 10/100/1000 Mbps
Auto MDIX: Yes
Full Duplex Support: Yes
Jumbo Frame Support: 9K max.
MTBF: 376,212 Hours
Supported Protocols: CSMA/CD
LED Indicators: 2 * Gigabit Detect (Yellow)
Operating temperature: 0°C to 70°C (32°F to 158°F)
Storage temperature: 0°C to 100°C (32°F to 212°F)
Humidity: 10% ~ 90% RH
